X-belt Installation Print
Created by: Landon Henrie
Modified on: Fri, 20 Sep, 2019 at 1:08 PM
Modified on: Fri, 20 Sep, 2019 at 1:08 PM

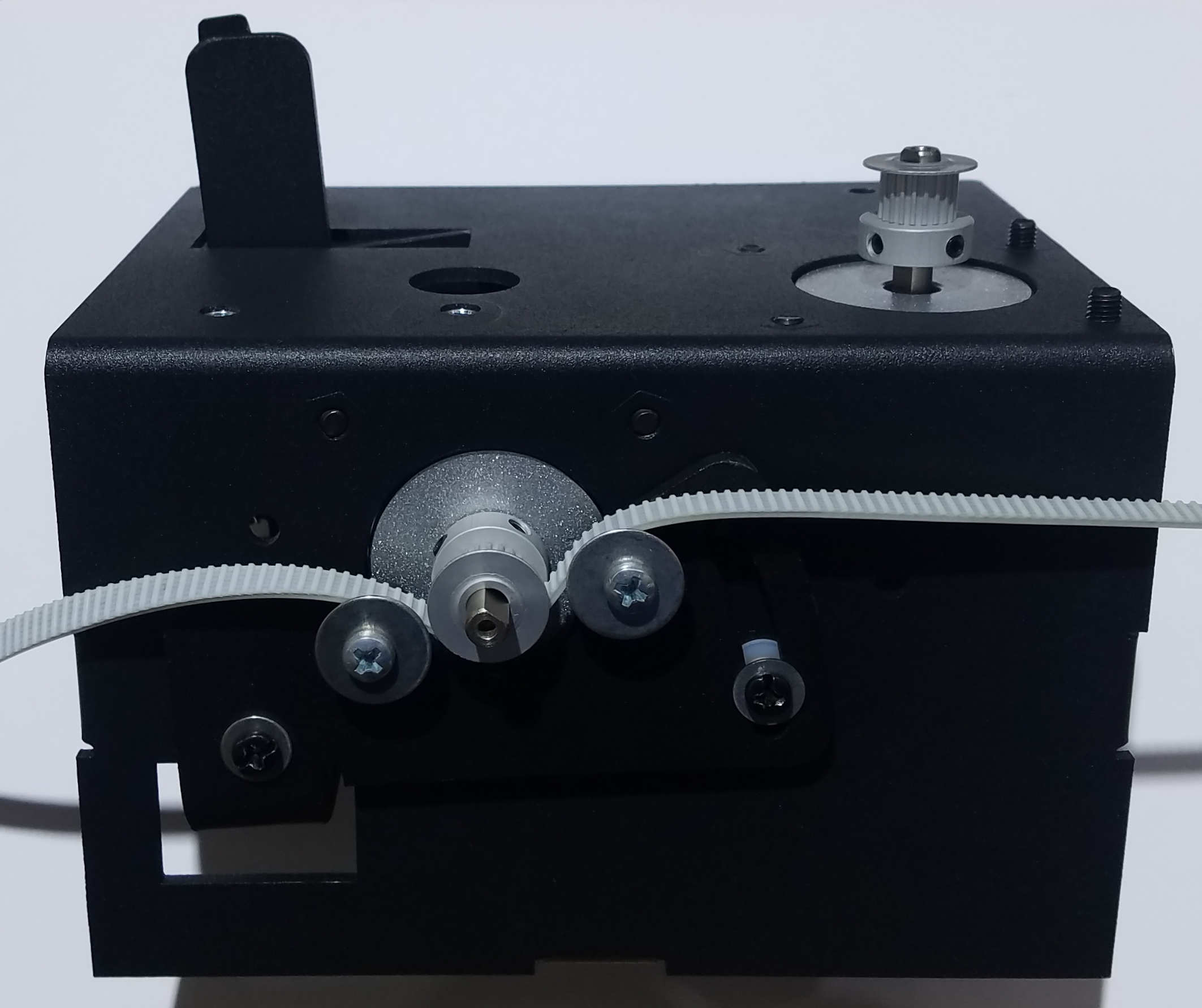

The correct installation of the X-belt on the robot is shown below, first of having the tension lever disengaged, then engaging it.
